Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Elaborazione del tipo: Macchina di plastica di Thermoforming

Tipo di plastica: PVC, PS, PA, PP, ANIMALE DOMESTICO

Altezza di Max.Forming (millimetro): 120 mm

Larghezza di formazione (millimetri): 780 millimetri

Lunghezza di formazione (millimetri): 700 MILLIMETRI

Velocità di produzione (cicli/min): 20-25cycle/min

Video uscente-ispezione: Fornito

Relazione sull'esperimento del macchinario: Fornito

Tipo commercializzante: Nuovo prodotto 2020

Garanzia delle componenti del centro: 1 anno

Componenti del centro: SpA, motore, contenitore a pressione, ingranaggio, pompa

Pressione d'aria (Mpa): 0,6 Mpa

Spessore dello strato (millimetri): 0.1 - 2,5 millimetri

Potere calorifico (chilowatt): 30 kw

Aria Comsumption (l/min): 130 l/min

Acqua Comsumption (l/min): 100 l/min

Circostanza: Nuovo

Tipo di prodotto: Contenitore di alimenti a rapida preparazione

Tensione: 380V ±10%

Dimensione (L*W*H): L900CM*W220CM*H270CM

Peso (t): 7 T

Garanzia: 1 anno

Industrie applicabili: Hotel, fabbrica, fabbrica della bevanda & dell'alimento, ristorante, negozi domestici di uso, di ven

Punti di vendita chiave: Alta produttività

Posizione della sala d'esposizione: Il Vietnam, Pakistan, India, Sri Lanka, Nigeria

Prodotti finiti: Contenitore eliminabile di alimenti a rapida preparazione, contenitore di frutta dell'insalata, cosm

Gamma di applicazione: Contenitore di alimento, cestello della frutta, copertura superiore, vassoi

Materiali: Le anche, PVC, PS, PA, COLPISCE, pp, Bopp, ENV, ANIMALE DOMESTICO

Formazione del metodo: Su e giù (fornace a due fasi) formarsi

Servizio di assistenza al cliente fornito: Supporto tecnico video, Ricambi gratuiti, Installazione sul campo, messa in servizio e formazione, S

Dopo servizio della garanzia: Video supporto tecnico, supporto online, servizio dei pezzi di ricambio, di manutenzione sul campo e

Posizione di servizio locale: Il Vietnam, India, Sri Lanka, Nigeria

Informazioni di base

Certificazione: ce

Termini di pagamento e spedizione

Descrizione di prodotto

Product Overview

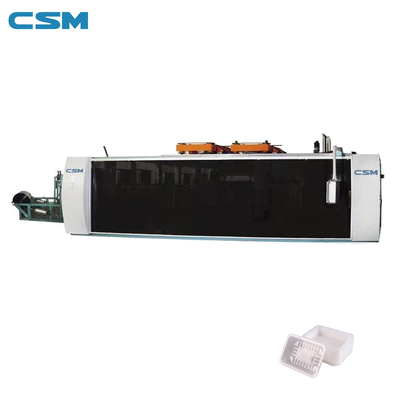

Three Station Lunch Box Plastic Negative Pressure Machine

The machine combines forming, cutting, and stacking into process,which is widely used and acknowdged by most of our customer. It can produce boxes, trays, fast food boxes, dishes, lids, cookies tray, egg tray, mobile phone tray & other blister tray, etc. The machine is completely driven by servo motor with features of stable operation, low noise, high efficiency and quality.

Technological process:

---Carrying material(cylinder drives the chain to work)

---heating(cylinder drives the electric furnace to lift in order to make a proof)

---pulling( cylinder drives the chain)

----lifting the lower die, falling the upper die(cylinder drives)

----vacuum forming(vacuum pump air admission )

---cooling(gas drives the spray gun to work, electric machinery drives the air
blowing)

----drawing of patterns(gas drives)

---pulling-cutting

---stacking on the line.

Product Paramenters

No.	Item	Data
1	Suitable Products	Disposable plastic lids,egg trays,clamshell boxes, containers, plates
2	Suitable Materials	PVC.PP.PET.PS.HIPS.PE.HDPE.PC.ABS.PLA sheet
3	Forming Size:	W780*L700mm
4	Thickness Range	0.1-2.5mm
4	Forming Area:	815mm
5	Max.Forming Depth	120mm
6	Industry Voltage	380V/50Hz (Three Phase, Four Wires)
7	Total Power/Actual power consumption	Heating oven Max. 85 KW, usually use 20-45KW/h
8	Max. Speed	20-25 Cycles per minute(Depending on material and thickness)
9	Max. Punching Force	80 Tons
10	Air Pressure	0.6MPa
11	Air Consumption	> 4000ℓ/min ( with Forming body )
12	Cooling Water	Normal Tap Water Recycle Cooling
13	Noise	<75DB
14	Machine Dimension	6000kg

Main Feature

A. This machine adopts integrated gas and electricity loading system.
B. Stainless steel pressure roller and automatic feeding (single roll material weight can reach 600-1000KG)
C. The pre-heating device is installed on both sides of the film.
D. There are multiple excessive rollers to ensure that the material will not running when stretching the sheet.
E. The heating furnace has forward and backward functions. It uses photoelectric eyes to detect the sag of the sheet after heating. When it exceeds a certain limit, it provides an alarm and has function of Exit the heating furnace to prevent the sheet from falling out of the heating furnace and causing fire.

Main Configuration

No.	Part	Brand
1	Vacuum Pump	Rietschle Germany
2	PLC	Delta Taiwan
3	Touch Screen	Delta Taiwan
4	Vacuum Solenoid Valve	SMC Japan
5	Temperature Control Module	AOYI
6	Auxiliary Relay	Schneider France
7	AC Contactor:	Schneider France
8	Air Switch	Schneider France
9	Transducer	Omron Japan
10	Linear Guide	Hiwin Taiwan
11	Oil-water Separator	Mindman Taiwan
12	Clamp Servo Motor	Delta Taiwan （4.5KW）
13	Upper mold Solenoid valve	Delta Taiwan
14	Lower mold Solenoid valve	Delta Taiwan
15	Decelerator	FALK USA
16	Bearing	SKF Swiss

Related Product

Company Profile

Customer Networking

Looking forward to cooperating with you!

Contacts	Ms. Katy Tian
Email	katy_tian@csmformingmachine.com
Mob/Whatspp	+86 13681660491
Wechat	13681660491
Facebook	https://www.facebook.com/katy.tian.775/
Youtube	https://www.youtube.com/channel/UCzAUHVCnbT6b3HEDJEDo6EQ
Address	Room 606-2 ,No. 799, Yinxiang Road, Changhui Tower, Jiading District, Shanghai, China

FAQ

Q1: Are You Manufactory or Trade Company?

A: We are the 100% Manufactory specialized in thermoforming industry for plastic disposable packaging over 10 years with 1,000 square meters workshop area, located in Huzhou, Zhejiang Province, which it's 2 hours by car from Shanghai Pudong Airport to our factory. You are warmly welcome to visit our factory.

Q2: What is the material you used? Is it food grade or eco friendly?

A: The main materials we used is PLA, PET, PP, PS, PVC, PC All the materials we used is food grade and eco friendly which pass ROHS, GRS, SGS,ISO9001,ect., EXCEPT PVC. PVC is not food grade materials. Mainly used to pack electronics and harware.

Q3: Can you provide OEM and ODM services?

A: We'll supply you the best quality and service and provide you with good advice beyond your requirements. The lines are easily for installation with low maintenance requirements.Yes. About OEM, you can customize machine such as printing your logo on, color and packaging. About ODM, our factory has a professional team with rich experience in the design and manufacture of plastic forming machines. Just tell us your idea and we will help to find the optimal solution.

Q4: Is there quality control when manufacturing the lines?

A: Certainly, we have a group of team who will be responsible for quality control from laying off the raw material, processing the rollers and the other parts, making treatment on the roller surface and shaft, assembling, testing and packaging.

Q5: What's your strength comparing to the other supplier?

A: We'll supply you the best quality and service and provide you with good advice beyond your requirements. The lines are easily for installation with low maintenance requirements.
